Pharmacy Supply Chain
This study comes from the publication 'Improving Simulation Optimization Run Time When Solving For Periodic Review Inventory Policies in A Pharmacy', which you can read here. It uses simulation based optimization (SBO) to find the values of the (s, S) policy parameters that keep the total cost of the pharmacy supply chain as low as possible.
In this example, we aim to understand the supply chain network described by the authors, implement it with SupplyNetPy, and replicate their results. This shows how much effort it takes to rebuild a specific system with SupplyNetPy, and helps to validate the library.
System Description

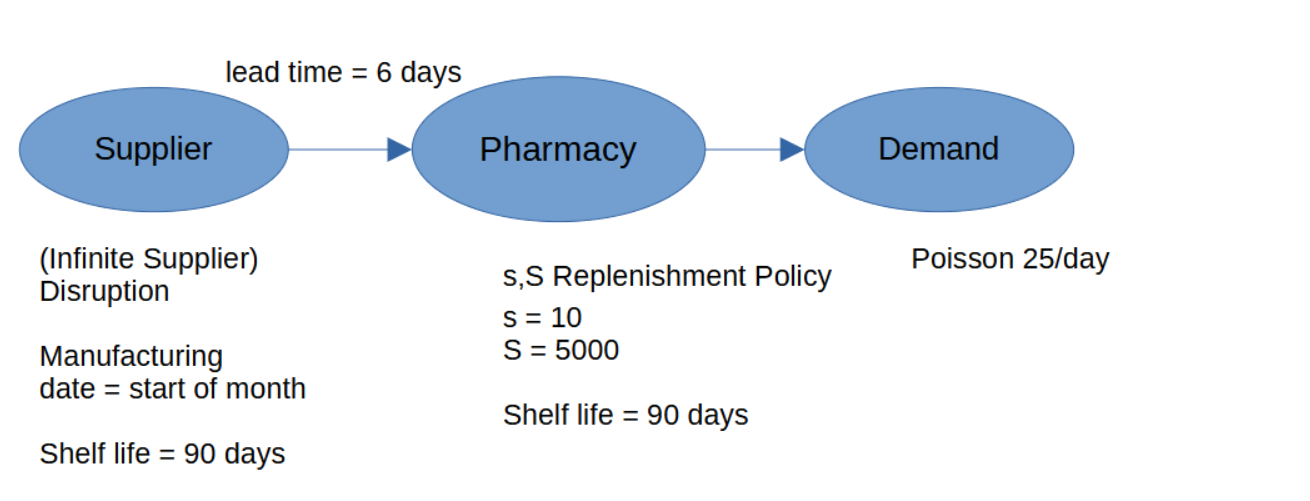

The system is a supply chain with a single level between the source and the customers. A hospital pharmacy (modeled as a distributor) is supplied directly by a pharmaceutical manufacturer (modeled as an infinite supplier).
- The pharmacy faces random demand, and is supplied by a supplier that never runs out.
- On any given day, a disruption of the supplier (when it cannot ship) starts with probability 0.01.
- The pharmacy follows an (s, S) replenishment policy. When its inventory position falls below s, it orders enough to bring the inventory position back up to S.
- The product is perishable, with a shelf life of 90 days.
- The authors model and simulate this system to find the values of s and S that minimize the expected total cost per day.
The inventory is perishable.
The inventory position is what the pharmacy can count on today, the units it holds now plus the units already ordered that have not arrived yet (in transit from the supplier). The next replenishment order is decided from it.
Inventory position = inventory level + inventory in transit
The replenishment policy is (s, S). When the inventory position falls below s, the pharmacy orders (S − inventory position) units, which brings the inventory position back up to S.
Review period = 1 day (the pharmacy checks its inventory every day).
The flowchart below uses this shorthand.
H = inventory level (the units the pharmacy holds)
H′ = the part of H that will expire at the end of day t
P = inventory position = H + inventory in transit
This flowchart shows the order of the events that take place at the pharmacy each day.
(Image source)
Daily Process for the Perishable Inventory
Begin day t
1. Order arrive at the Pharmacy
2. Update Inventory Levels (H)
3. Satisfy demand based on Inventory Levels
3.1. If (d>H):
- demand Satisfied = H
- Shortage = d-H
- Waste = 0
3.2. Else:
- demand Satisfied = d
- Shortage = 0
- Waste = max{0,H'-d}
4. Discard Expired Drugs
5. Update Inventory Levels (H)
5.1. Is (s>P) and (Supplier not Disrupted):
- Place order for (S-P)
5.2. Else:
- Do not place order
6. End of the day t
The optimization objective is to minimize the expected cost per day.
The costs of interest are the shortage, waste, holding and ordering costs.
Assumptions
- All drugs that arrive in the same month come from the same production batch, and expire at the end of the same month. So drugs are only thrown away at the end of a month.
- The inventory level is known each day.
- The number of days until the inventory expires is known each day.
- The lead time is fixed and positive. An order placed at the end of day (t − 1) arrives at the beginning of day t.
- Demand is random.
- Supply is uncertain because of disruptions. Demand and disruptions are independent of each other.
- All demand that is not met is lost.
- Orders are served with the oldest units first (first in, first out).
System Configuration
- T = number of days (360)
- Costs are counted from day 31 to day 360, after a warm up of 30 days, as in the paper. A SupplyNetPy run stops just before its end time, so the warm up runs to time 31 and the main run to time T + 1.
- l = lead time (6 days)
- e = shelf life of the drugs (3 months, that is 90 days)
- R = number of simulation runs, or replications (5000)
- b = shortage cost (5, relative to the buy price)
- z = waste cost (1, relative to the buy price)
- h = holding cost (0.001, relative to the buy price)
- o = ordering cost (0.5, relative to the buy price)
- dt = demand on day t (random, Poisson with a mean of 25 a day)
- yt = whether the supply is disrupted on day t (yt = 0 disrupted, yt = 1 available)
- Time until the next disruption, geometric with p = 0.01
- Time to recover from a disruption, geometric with p = 1/30
Implementation
import simpy
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.pyplot import figure
import SupplyNetPy.Components as scm
class Distributions:
"""
Class to generate random numbers for demand (order quantity) and order arrival arrival times.
Parameters:
mu (float): Mean of the exponential distribution for order arrival times.
lam (float): Lambda parameter of the Poisson distribution for demand (order quantity).
"""
def __init__(self,mu=1,lam=1,p=0.01):
self.mu = mu
self.lam = lam
self.p = p
def poisson_demand(self):
return np.random.poisson(self.lam)
def expo_arrival(self):
return np.random.exponential(self.mu)
def geometric(self):
return np.random.geometric(self.p,1)[0]
def manufacturer_date_cal(time_now):
"""Calculate manufacturing date rounded down to the nearest month."""
return time_now - (time_now % 30)
# Global parameters
T = 360 #number of days (360 days)
l = 6 #deterministic lead time (6 days)
e = 90 #shelf life of the drugs (months) (3 months)
R = 5000 #number of simulation replication (5000)
b = 5 #shortage cost (5 units)
z = 1 #waste cost (1 units)
h = 0.001 #holding cost (0.001 units)
o = 0.5 #ordering cost (0.5 units)
dt = 25 #demand on day t (stochastic) (Poisson 25/day)
# yt = binary variable for supply disruption status on day t (yt=0 disrupted, yt=1 available) (stochastic) (p=0.01)
yt_p = 0.01 # ~ Geometric(p=0.01), sampled from Geometric distribution with probability p = 0.01
yt_r = 1/30 # node recovery time ~ Geometric(p=1/30), sampled from Geometric distribution with probability p = 1/30 = 0.033
price = 7 # unit cost of drug
def setup_simulation(env, s, S, ini_level, st, disrupt_time, recovery_time):
"""Setup environment, supplier, distributor, link, and demand process."""
supplier = scm.Supplier(env=env, ID="S1", name="Supplier 1", node_type="infinite_supplier",
node_disrupt_time=disrupt_time.geometric,
node_recovery_time=recovery_time.geometric)
distributor = scm.InventoryNode(env=env, ID="D1", name="Distributor 1", node_type="distributor",
capacity=float('inf'), initial_level=ini_level,
inventory_holding_cost=h, inventory_type="perishable",
manufacture_date=manufacturer_date_cal, shelf_life=e,
replenishment_policy=scm.SSReplenishment,
policy_param={'s': s, 'S': S, 'period': 1},
product_buy_price=0, product_sell_price=price)
link = scm.Link(env=env, ID="l1", source=supplier, sink=distributor,
cost=o, lead_time=lambda: l)
demand = scm.Demand(env=env, ID="d1", name="demand 1", order_arrival_model=lambda: 1, consume_available=True,
order_quantity_model=st.poisson_demand, demand_node=distributor)
return supplier, distributor, demand, link
def single_sim_run(S, s, ini_level, logging=True):
"""Run a single simulation instance and return expected cost."""
env = simpy.Environment()
st = Distributions(mu=1, lam=dt)
disrupt_time = Distributions(p=yt_p)
recovery_time = Distributions(p=yt_r)
supplier, distributor, demand, link = setup_simulation(env, s, S, ini_level, st, disrupt_time, recovery_time)
pharma_chain = scm.create_sc_net(env=env, nodes=[supplier, distributor], links=[link], demands=[demand])
# warm-up: days 1 to 30 (a run stops just before sim_time, so 31 includes day 30)
pharma_chain = scm.simulate_sc_net(pharma_chain,sim_time=31,logging=logging)
supplier.stats.reset()
distributor.stats.reset()
demand.stats.reset()
# days 31 to T, as in the paper (T + 1 includes day T)
pharma_chain = scm.simulate_sc_net(pharma_chain,sim_time=T + 1,logging=logging)
shortage = distributor.stats.shortage[1]
waste = distributor.stats.inventory_waste
holding = distributor.stats.inventory_carry_cost
transport = distributor.stats.transportation_cost
total_cost = (shortage * b + waste * z + holding + transport)
cost_per_day = total_cost / (T - 30) * price
if logging:
print("Shortage cost:", shortage * b)
print("Waste cost:", waste * z)
print("Holding cost:", holding)
print("Transportation cost:", transport)
return cost_per_day
def run_for_s(s_low, s_high, s_step, capacity, ini_level, num_replications):
"""Run simulations across reorder point values and report results."""
results = []
st = Distributions(mu=1, lam=dt)
disrupt_time = Distributions(p=yt_p)
recovery_time = Distributions(p=yt_r)
#print("reorder_point, exp_cost_per_day, std, std_err")
for s in range(s_low, s_high, s_step):
costs = []
for _ in range(num_replications):
env = simpy.Environment()
supplier, distributor, demand, link = setup_simulation(env, s, capacity, ini_level, st, disrupt_time, recovery_time)
pharma_chain = scm.create_sc_net(env=env, nodes=[supplier, distributor], links=[link], demands=[demand])
# warm-up: days 1 to 30 (a run stops just before sim_time, so 31 includes day 30)
pharma_chain = scm.simulate_sc_net(pharma_chain,sim_time=31,logging=False)
supplier.stats.reset()
distributor.stats.reset()
demand.stats.reset()
# days 31 to T, as in the paper (T + 1 includes day T)
pharma_chain = scm.simulate_sc_net(pharma_chain,sim_time=T + 1,logging=False)
shortage = distributor.stats.shortage[1]
waste = distributor.stats.inventory_waste
holding = distributor.stats.inventory_carry_cost
transport = distributor.stats.transportation_cost
total_cost = (shortage * b + waste * z + holding + transport)
cost_per_day = total_cost / (T - 30) * price
costs.append(cost_per_day)
mean_cost = np.mean(costs)
std_dev = np.std(costs)
std_err = std_dev / np.sqrt(num_replications)
#print(f"[{s}, {mean_cost}, {std_dev}, {std_err}]")
results.append((s, mean_cost, std_dev, std_err))
return results
# Parameters for the simulation
s_low = 100
s_high = 5000
s_step = 100
capacity = 5000
ini_level = 5000
num_rep = 1000
Assessing Time Complexity
First, let's evaluate the time complexity in relation to the number of simulation runs (replications) (R) in order to estimate the expected costs. The code estimates the execution time for R simulations, where R takes on the values of 1000, 2000, 3000, 4000, and 5000.
import time
stats = []
scm.global_logger.disable_logging() # enable logging
for replications in [1000, 2000, 3000, 4000, 5000]:
exp_cost_arr = []
start_time = time.time()
for rep in range(0, replications):
exp_cost_arr.append(single_sim_run(s=2000,S=5000,ini_level=5000,logging=False))
exp_cost_arr = np.array(exp_cost_arr)
exe_time = time.time() - start_time
print(f"R ={replications}, exe_time:{exe_time} sec, mean:{np.mean(exp_cost_arr)}, std:{np.std(exp_cost_arr)}, std_err:{np.std(exp_cost_arr)/np.sqrt(replications)}")
stats.append((replications, exe_time, np.mean(exp_cost_arr), np.std(exp_cost_arr), np.std(exp_cost_arr)/np.sqrt(replications)))
R =1000, exe_time:51.769 sec, mean:50.048060053, std:7.4660307713637595, std_err:0.2360966231841331
R =2000, exe_time:101.864 sec, mean:49.9624304385, std:7.811992134196132, std_err:0.1746814545175621
R =3000, exe_time:149.301 sec, mean:50.108267019, std:7.6860393971748335, std_err:0.14032723852353549
R =4000, exe_time:209.294 sec, mean:49.780505389750004, std:7.452137829370824, std_err:0.11782864489157517
R =5000, exe_time:308.672 sec, mean:49.6810310832, std:7.299895652439416, std_err:0.10323611435588215

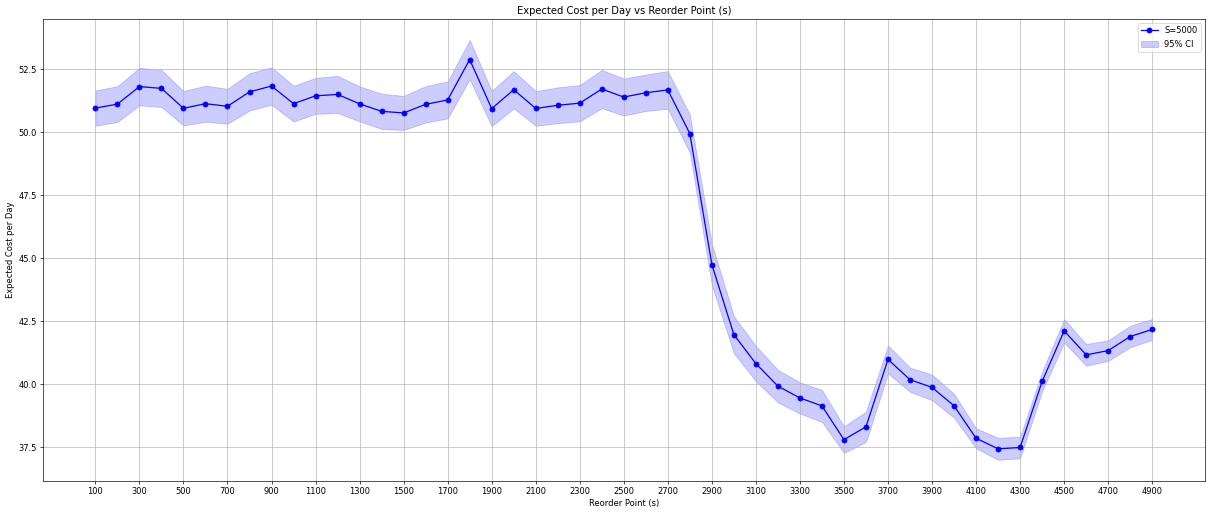

Estimating Confidence Interval
To ensure the estimation error is reasonable, we estimate the expected costs for the replenishment policy setting \(S = 5000\) and variable \(s\) with \(R = 1000\) simulation runs and plot the confidence intervals.
exp_cost_per_day = run_for_s(s_low=s_low,s_high=s_high,s_step=s_step,capacity=capacity,ini_level=ini_level,num_replications=num_rep)
exp_cost_per_day = np.array(exp_cost_per_day)
figure(figsize=(25, 10), dpi=60)
plt.plot(exp_cost_per_day[:,0], exp_cost_per_day[:,1],marker='o', linestyle='-', color='b', label='S=5000')
plt.fill_between(exp_cost_per_day[:,0], exp_cost_per_day[:,1]-2*exp_cost_per_day[:,3], exp_cost_per_day[:,1]+2*exp_cost_per_day[:,3],alpha=0.2, color='b', label='95% CI')
plt.xlabel('Reorder Point (s)', fontsize=20)
plt.ylabel('Expected Cost per Day', fontsize=20)
plt.xticks(np.arange(s_low, s_high, 200), rotation=90)
plt.tick_params(labelsize=18)
plt.title('Expected Cost per Day vs Reorder Point (s)', fontsize=22)
plt.legend(fontsize=18)
plt.grid()
plt.show()

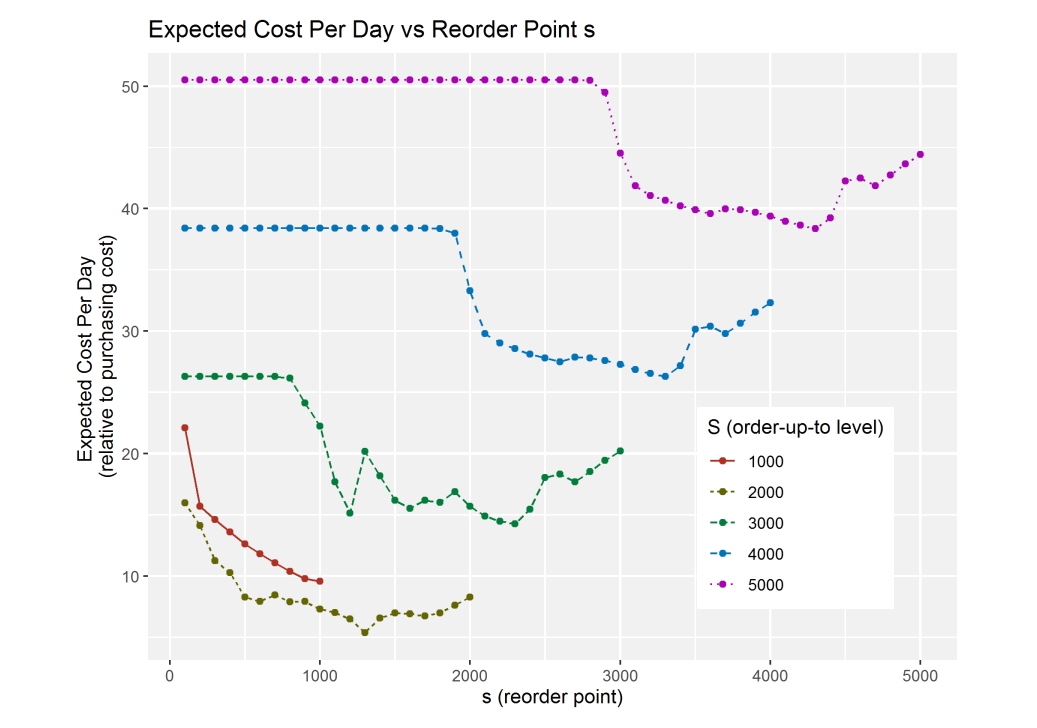

Running the Model with Varying (S, s)
To determine the optimal values of the parameters \(S\) and \(s\), we run the model with different settings for both parameters. The parameter \(S\) takes on values of 1000, 2000, 3000, 4000, and 5000. For each value of \(S\), the parameter \(s\) is set to values ranging from 100 up to \(S\). The results obtained from these runs are then plotted and compared with the findings reported by the authors. Below, we present both sets of plots for comparison.
exp_cost_per_day = run_for_s(s_low=s_low, s_high=5000, s_step=s_step, capacity=5000, ini_level=5000, num_replications=num_rep)
exp_cost_per_day = np.array(exp_cost_per_day)
exp_cost_per_day2 = run_for_s(s_low=s_low,s_high=4000,s_step=s_step,capacity=4000,ini_level=4000,num_replications=num_rep)
exp_cost_per_day2 = np.array(exp_cost_per_day2)
exp_cost_per_day3 = run_for_s(s_low=s_low,s_high=3000,s_step=s_step,capacity=3000,ini_level=3000,num_replications=num_rep)
exp_cost_per_day3 = np.array(exp_cost_per_day3)
exp_cost_per_day4 = run_for_s(s_low=s_low,s_high=2000,s_step=s_step,capacity=2000,ini_level=2000,num_replications=num_rep)
exp_cost_per_day4 = np.array(exp_cost_per_day4)
exp_cost_per_day5 = run_for_s(s_low=s_low,s_high=1000,s_step=s_step,capacity=1000,ini_level=1000,num_replications=num_rep)
exp_cost_per_day5 = np.array(exp_cost_per_day5)

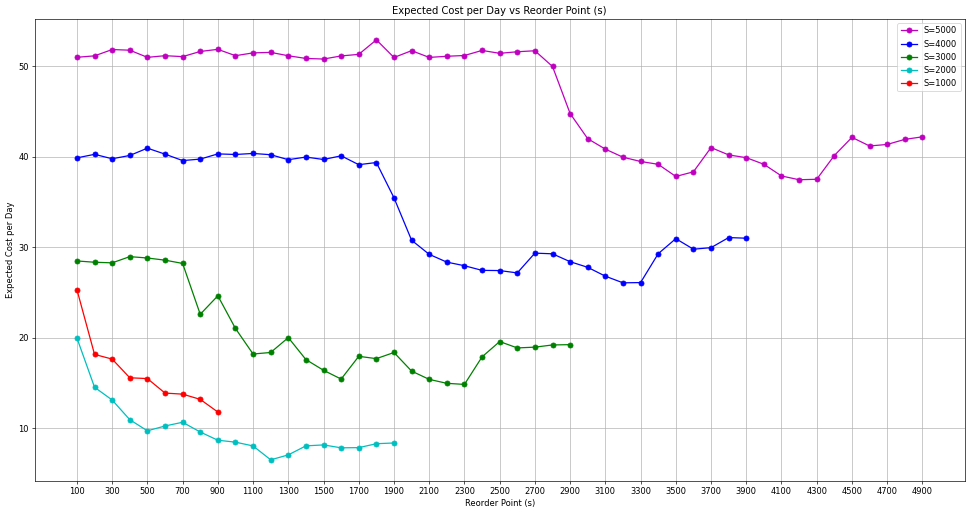

figure(figsize=(25, 10), dpi=60)
plt.plot(exp_cost_per_day[:,0], exp_cost_per_day[:,1],marker='o', linestyle='-', color='m', label='S=5000')
plt.plot(exp_cost_per_day2[:,0], exp_cost_per_day2[:,1],marker='o', linestyle='-', color='b', label='S=4000')
plt.plot(exp_cost_per_day3[:,0], exp_cost_per_day3[:,1],marker='o', linestyle='-', color='g', label='S=3000')
plt.plot(exp_cost_per_day4[:,0], exp_cost_per_day4[:,1],marker='o', linestyle='-', color='c', label='S=2000')
plt.plot(exp_cost_per_day5[:,0], exp_cost_per_day5[:,1],marker='o', linestyle='-', color='r', label='S=1000')
plt.xticks(np.arange(s_low, s_high, 200), rotation=90)
plt.tick_params(labelsize=18)
plt.xlabel('Reorder Point (s)', fontsize=20)
plt.ylabel('Expected Cost per Day', fontsize=20)
plt.title('Expected Cost per Day vs Reorder Point (s)', fontsize=22)
plt.legend(fontsize=18)
plt.grid()
plt.show()
The following plot displays the results obtained by the authors.
Image source, the paper.
