This example is from the textbook Supply Chain Management: Strategy, Planning, and Operation, (Chopra and Meindl)
Find the Google Colab notebook for this example here.

Estimating Safety Stock Level

Safety inventory (the textbook's name for safety stock, the extra units kept as a buffer) can help a supply chain make its product more available when supply and demand vary.

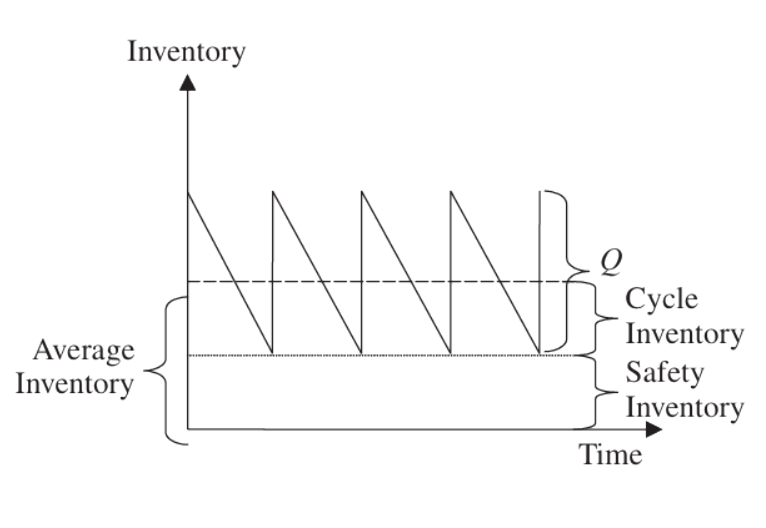

How the inventory level changes over time, with a safety inventory.

Image source, the textbook Supply Chain Management: Strategy, Planning, and Operation (Chopra and Meindl).

System Description

Bloomingdale sells Gucci purses. Demand is 100 per week. Gucci takes 3 weeks to deliver purses to Bloomingdale after an order. So Bloomingdale could place an order when exactly 300 purses are left in its inventory.

Because demand varies, the demand over three weeks may be more or less than 300. If it is more, Bloomingdale will lose sales. The store manager decides to place an order when 400 purses are left (so the safety inventory is 100).

Goal. To work out the right level of safety inventory.

Replenishment policies.

  1. Continuous review. The inventory is tracked all the time, and an order for a fixed lot size Q is placed the moment the inventory falls to a set level called the reorder point (ROP). For example, consider the store manager at B&M who tracks the inventory of phones all the time. She orders 600 phones the moment the inventory drops below the reorder point of 400. In this case, the size of each order is fixed (always 600), and only the time between orders varies, depending on how fast customers buy the phones. In SupplyNetPy, this is the (R, Q) policy.

  2. Periodic review. The inventory is checked at regular intervals, and an order is placed to raise the inventory to a set level. For example, consider the purchase of film at B&M. The store manager does not track film inventory all the time. Every Thursday, employees check the film inventory, and the manager orders enough so that the available inventory plus the order adds up to 1,000 films. In this case, the time between orders is fixed, but the size of each order can vary with demand.

Numerical Example

Evaluating Safety Inventory, Given an Inventory Policy

Assume that weekly demand for phones at B&M Office Supplies is normally distributed, with a mean of 2,500 and a standard deviation of 500. The manufacturer takes two weeks to fill an order placed by the B&M manager. The store manager currently orders 10,000 phones when the inventory drops to 6,000. Evaluate the safety inventory and the average inventory carried by B&M. Also evaluate the average time a phone spends at B&M.

Analytical solution.
Under this replenishment policy, we have
Average demand per week, \(D = 2500\)
Standard deviation of weekly demand, \(\sigma_D = 500\)
Average lead time, \(L = 2\) weeks
Reorder point, \(ROP = 6000\)
Average lot size, \(Q = 10000\)

Using equation 12.3 in the textbook,

Safety inventory, \(ss = ROP - D^*L = 6000-5000 = 1000\)
B&M thus carries a safety inventory of 1,000 phones.

Cycle inventory = \(\frac{Q}{2} = \frac{10000}{2} = 5000\)

Average inventory = cycle inventory + safety inventory \(= 5000 + 1000 = 6000\)

Average flow time = average inventory/throughput \(= \frac{6000}{2500} = 2.4\) weeks

The network.

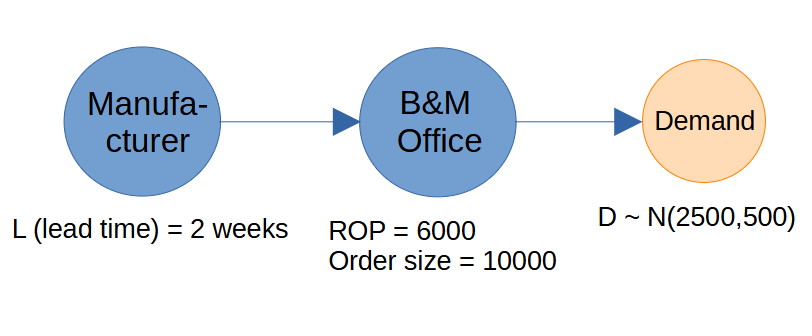

The supply chain network for this example.

The cost per unit and the transportation cost are not given, so any values can be used. We want to find the following.

  • Safety inventory level (the average number of phones in inventory when a replenishment order arrives).
  • Cycle inventory (the average inventory level).
  • Average flow time (the average time a unit spends in the inventory).

Implementation

import simpy
import numpy as np
import matplotlib.pyplot as plt
import SupplyNetPy.Components as scm

np.random.seed(42) # fixed seed for repeatable results

daily_demand_mean = 2500/7
daily_demand_std = 500/(7**0.5)
simlen = 3650 # simulation length in days

def normal_quantity():
    global daily_demand_mean, daily_demand_std
    sample = -1
    while sample < 0:
        sample = np.random.normal(daily_demand_mean, daily_demand_std, 1)[0]
    return sample

env = simpy.Environment()
# create an infinite supplier
supplier1 = scm.Supplier(env=env, ID="S1", name="Supplier1", node_type="infinite_supplier")
#create the distributor
distributor1 = scm.InventoryNode(env=env, ID="D1", name="Distributor1", node_type="distributor", capacity=float('inf'), initial_level=6000, inventory_holding_cost=0.1,
                                product_buy_price=0, replenishment_policy=scm.RQReplenishment, policy_param={'R':6000,'Q':10000}, product_sell_price=399, record_inv_levels=True)
link1 = scm.Link(env=env,ID="l1", source=supplier1, sink=distributor1, cost=100, lead_time=lambda: 14)
demand1 = scm.Demand(env=env,ID="d1", name="demand_d1", order_arrival_model=lambda: 1, order_quantity_model=normal_quantity, demand_node=distributor1)
scm.global_logger.disable_logging() # disable logging
env.run(until=simlen)

# calculate performance metrics
safety_stock = []
replenish_cycles = [0]

inv_levels = np.array(distributor1.inventory.instantaneous_levels) # instantaneous inventory levels
# lets calculate safety stock level
for i in range(len(inv_levels)-1):
    if(inv_levels[i,1]<inv_levels[i+1,1]): # inventory level is increasing that means a replenishment order is received
        safety_stock.append(inv_levels[i,1])
        replenish_cycles.append(inv_levels[i,0]) # time of replenishment order

# calculate average flow time (amount of time an item is stored in inventory)
flow_time = []
for i in range(len(replenish_cycles)-1):
    flow_time.append(replenish_cycles[i+1]-replenish_cycles[i])

print("\n\t***\nSafety Stock Level: ", np.mean(safety_stock))
print("Average Inventory Level:", np.mean(inv_levels[:,1]))
print("Average Flow Time: ", np.mean(flow_time)/2, "days","\n")

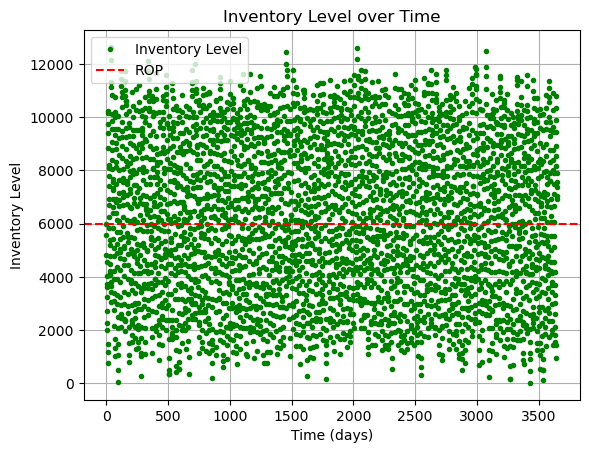

# plot the inventory level over time
plt.plot(inv_levels[:,0], inv_levels[:,1], marker='.', label="Inventory Level", color='green', linestyle='')
plt.axhline(y=6000, color='r', linestyle='--', label="ROP")
plt.xlabel("Time (days)")
plt.ylabel("Inventory Level")
plt.title("Inventory Level over Time")
plt.legend()
plt.grid()
plt.show()

    ***
Safety Stock Level:  1260.7957571939298
Average Inventory Level: 6115.0800971596045
Average Flow Time:  13.371323529411764 days

png

Since the demand at the B&M office is unpredictable, we will estimate the safety inventory by conducting multiple simulations. First, we will define a function to simulate the B&M office sales. We will then use this function to run several simulations.

np.random.seed(42) # fixed seed for repeatable results

def bnmoffice():
    env = simpy.Environment()

    # create an infinite supplier
    supplier1 = scm.Supplier(env=env, ID="S1", name="Supplier1", node_type="infinite_supplier")

    #create the distributor
    distributor1 = scm.InventoryNode(env=env, ID="D1", name="Distributor1", node_type="distributor", capacity=16000, initial_level=6000, inventory_holding_cost=0.1,
                                    product_buy_price=0, replenishment_policy=scm.SSReplenishment, policy_param={'s':6000,'S':16000}, product_sell_price=399, record_inv_levels=True)

    link1 = scm.Link(env=env,ID="l1", source=supplier1, sink=distributor1, cost=100, lead_time=lambda: 14)

    demand1 = scm.Demand(env=env,ID="d1", name="demand_d1", order_arrival_model=lambda: 1, order_quantity_model=normal_quantity, demand_node=distributor1)

    scm.global_logger.disable_logging() # disable logging
    env.run(until=simlen)

    # calculate performance metrics
    safety_stock = []
    replenish_cycles = [0]

    inv_levels = np.array(distributor1.inventory.instantaneous_levels) # instantaneous inventory levels
    # lets calculate safety stock level
    for i in range(len(inv_levels)-1):
        if(inv_levels[i,1]<inv_levels[i+1,1]): # inventory level is increasing that means a replenishment order is received
            safety_stock.append(inv_levels[i,1])
            replenish_cycles.append(inv_levels[i,0]) # time of replenishment order

    # calculate average flow time (amount of time an item is stored in inventory)
    flow_time = []
    for i in range(len(replenish_cycles)-1):
        flow_time.append(replenish_cycles[i+1]-replenish_cycles[i])

    return np.mean(safety_stock), np.mean(inv_levels[:,1]), np.mean(flow_time)/2

num_simulations = 100
ana_arr = [] # let us gather all stats in this variable
for i in range(0,num_simulations):
    ana_arr.append([])
    safety_stock, avg_inv, flow_t = bnmoffice()
    ana_arr[-1].extend([safety_stock, avg_inv, flow_t])

ana_arr = np.array(ana_arr) # convert to array for convenience
#Final Stats
print("\n\t***\nSafety Stock Level: Mean: ", np.mean(ana_arr[:,0]), " Std:", np.std(ana_arr[:,0]))
print("Average Inventory Level:", np.mean(ana_arr[:,1]), " Std:",  np.std(ana_arr[:,1]))
print("Average Flow Time: ", np.mean(ana_arr[:,2]), "days","\n", " Std:",  np.std(ana_arr[:,2]))


Results

    ***
Safety Stock Level: Mean:  1339.5033048247421  Std: 49.96583138717028
Average Inventory Level: 6310.421891038721  Std: 40.27311395206424
Average Flow Time:  13.806400122912272 days
  Std: 0.10341730434846103

We obtain a slightly higher safety level, and average inventory levels from the simulation because sampling from a normal distribution can yield a few values less than zero. In our method, normal_quantity(), we resample in such cases to ensure that we only get numbers that are greater than or equal to zero, as negative demand is not possible. This resampling increases the probability of obtaining positive values. We will demonstrate this further below.

def normal_quantity():
    """
    Normal Distribution with given mean, and std
    A new sample is generated for every negative sample
    """
    global daily_demand_mean, daily_demand_std
    sample = -1
    while sample < 0:
        sample = np.random.normal(daily_demand_mean, daily_demand_std, 1)[0]
    return sample

def normal_quantity_mean():
    """
    Normal Distribution with given mean, and std
    The mean value replaces a negative sample
    """
    global daily_demand_mean, daily_demand_std
    sample = np.random.normal(daily_demand_mean, daily_demand_std, 1)[0]
    if sample < 0:
        sample = daily_demand_mean
    return sample

def normal_quantity_wn():
    """
    Normal Distribution with given mean, and std including negatives
    """
    global daily_demand_mean, daily_demand_std
    sample = np.random.normal(daily_demand_mean, daily_demand_std, 1)[0]
    return sample

np.random.seed(42) # fixed seed for repeatable results
samples = []
samples_wn = []
samples_mean = []
for r in range(5000):
    samples.append(normal_quantity())
    samples_wn.append(normal_quantity_wn())
    samples_mean.append(normal_quantity_mean())

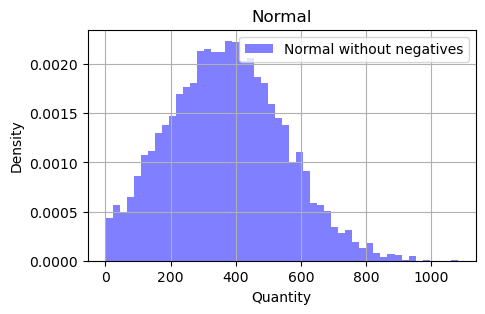

plt.figure(figsize=(5, 3))
plt.hist(samples, bins=50, density=True, alpha=0.5, color='blue', label='Normal without negatives')
plt.title('Normal')
plt.xlabel('Quantity')
plt.ylabel('Density')
plt.grid()
plt.legend()

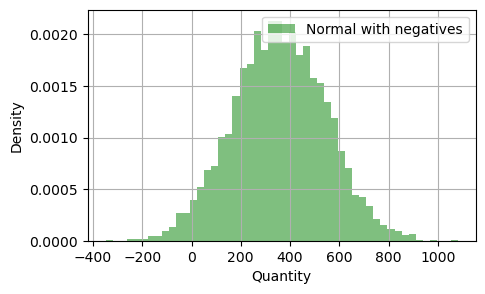

plt.figure(figsize=(5, 3))
plt.hist(samples_wn, bins=50, density=True, alpha=0.5, color='green', label='Normal with negatives')
#plt.title('Normal without negative quantities')
plt.xlabel('Quantity')
plt.ylabel('Density')
plt.grid()
plt.legend()

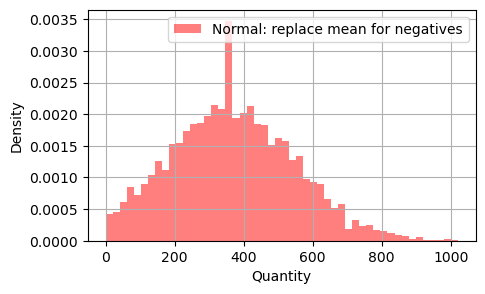

plt.figure(figsize=(5, 3))
plt.hist(samples_mean, bins=50, density=True, alpha=0.5, color='red', label='Normal: replace mean for negatives')
#plt.title('Normal with mean for negative quantities')
plt.xlabel('Quantity')
plt.ylabel('Density')
plt.grid()
plt.legend()

png

png

png
